Concept 2-Panel Curved Acoustic Screen
- Designed and manufactured in the UK by Go Displays.
- Curved acoustic screen, with 2 fabric panels
- Each side is upholstered using acoustic foam and your choice of 25 fabric colours.
- Features a strong aluminium frame finished with silver or black powder coated paintwork
- Includes an internal 18mm solid core and 12mm fire retardant foam on both sides.
- Quick and simple to assemble and easy to use.
- Screen core is pressed together under immense pressure to make it extremely robust.
- Still not convinced? Come along to our showroom in Peterborough to see for yourself!

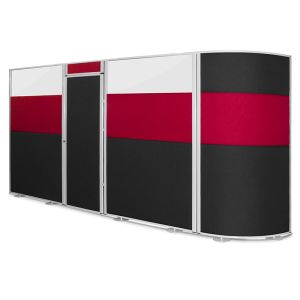

The Concept 2 Panel Curved Acoustic Screen has the same benefits of the 2 panel Concept, except we’ve added a curve. A curve shape screen creates the perfect shape to connect your Concept screens together as part of a small configuration or full office pod.
A design with 2 upholstered panels per office partition, creates an extra choice of fabric colour. Mix and match your colours per screen and per panel, to create a run of screens that is specific to you. Match your colours to your logo or office design and watch as your chosen colours flow effortlessly throughout the room.
Along with the choice of fabrics, the frame colour can also be customised. With black, white and silver frame options, the matching stability will be supplied to match.
Product specifications for the Concept Acoustic & Glazed Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade) Raise screen by 77mm & protrude 255mm each side of screen
Internal - 18mm solid core
Glazed Section - Clear/frosted/printed 3mm acrylic
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Fabric Options
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
Can I choose more than 1 colour per screen?
Yes you can! We have designed the Concept 2 and 3 part for this reason, so you’re able to choose more than one fabric colour per screen.
Mix and match colours as you create a unique acoustic office screen layout.
Can I add print?
On the full acoustic Concept Partition Screens it’s not possible to add any print, but on the concept screen with the acrylic panel it’s possible.
Add custom print to the acrylic panel in the form of any image, logo, or text.
How long will my screens take?
As the Concept Acoustic Screens are made to order, we require 10 working days to manufacturer and dispatch. We will make the screen to your desired size and colour selections.
Do I need to purchase anything additional to use the Concept Screens?
No, everything you need to get started is included. You’ll receive a set of trip and wheelchair friendly stability feet and a flexible linking strip.
Are the Concept Office Screens portable?
As standard, the Concept screens are supplied with stability feet which aren't portable. Upgrades to castor wheels are available to transform the static partition into a portable solution.
